Wind turbine flange

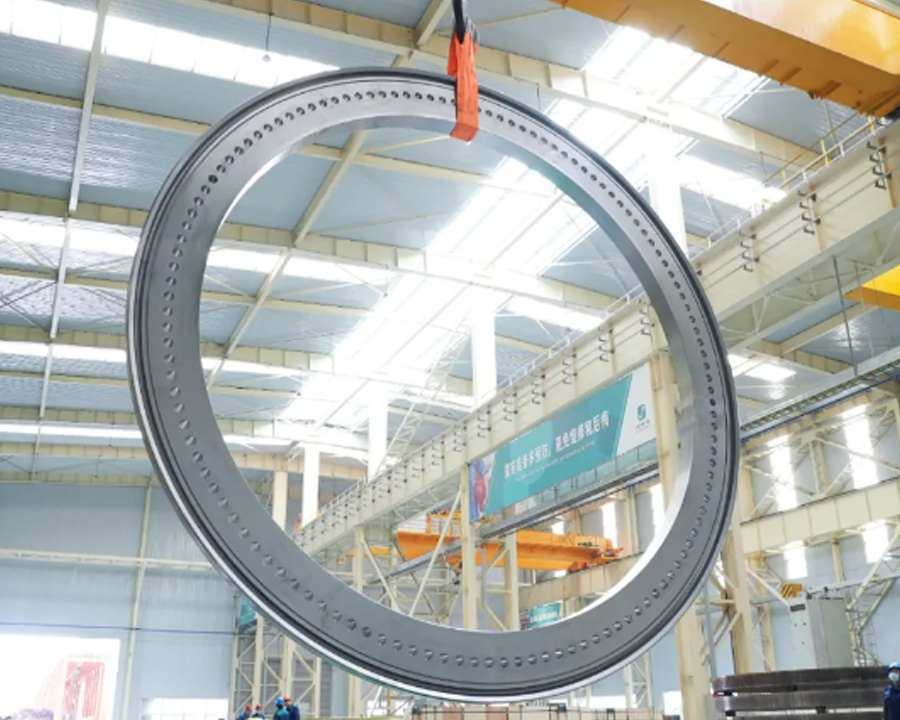

The wind power flange seems to be a “negligible” component in the Pang wind power industry chain system, but if wind turbines want to operate smoothly in the natural environment for 20 years, the role of the flange is indispensable. Especially at sea, the intrusion of typhoons is common, and a set of high-performance flanges can straighten the “backbone” of offshore units to resist loads from all directions.Wind turbine flanges can be classified according to their usage location and structural characteristics, including tower flange, hub flange, blade flange, tower base flange, generator flange, etc.
Wind turbine flange classification
1. Tower flange: used to connect various sections of the wind turbine tower, usually with a larger diameter and heavier weight. When designing, it is necessary to consider the load-bearing capacity and fatigue resistance of the wind turbine tower.
2. Hub flange: The flange that connects the hub and the top of the tower, which needs to withstand the thrust and bending moment from the wind turbine, thus requiring high strength and stiffness.
3. Blade flange: used to connect the root of the blade to the hub. This type of flange has a relatively small size, but requires high precision to ensure the correct installation angle of the blade and efficient operation of the fan.
4. Tower base flange: connects the tower base and the tower tube, mainly bearing the wind turbine itself and the wind force it receives, with seismic performance and corrosion resistance.
5. Generator flange: connects the generator to the propeller shaft, mainly bearing the weight and rotational torque of the generator, with high strength and rigidity.
6. Pitch frame flange: connects the pitch frame with the blade shaft, mainly controlling the angle and speed of the blades, with precise and stable adjustment effect.
7. Assembly accessories flange: used to connect internal pipelines, valves, pumps and other equipment of the fan, with sealing performance and easy installation characteristics.
Premium Flanges For The Oil And Gas Industry
Looking for world-class flanges for your industry? We at Huaxi Flange offer premium flanges with unmatched strength and top-notch performance.
Slip-On Flanges
Slip-on flanges on the pipe and connect without utilizing additional tools for installation. The design of slip-on flanges allows direct and secure pipe connections that can withstand high pressure and temperature conditions without leaking or bursting.
Weld Neck Flanges
A weld neck flanges transfers stress to the pipes, lessening the high-stress concentration at the bottom of the flange. This attribute of weld neck flanges makes them suitable for the oil and gas industry.
Blind Flanges
Blind flanges temporarily or permanently block the flow of fluids or gases in a pipeline. It is beneficial when a pipeline needs to be disconnected from the rest of the system for maintenance, repairs, or other purposes.
Lap Joint Flanges
Lap joint flanges are appropriate for connecting pipes or equipment or fittings together. These flanges are quite similar to slip-on flanges. They are designed to slide over the pipe and create a secure pipe connection using bolts and a stub-end fitting. They are not welded to the pipe and can spin to match bolt holes that are not predetermined. You will see these parts in shipyards often.
Threaded Flanges
A threaded flanges connects a device securely to a pipe without welding. Threads create a secure and leakage-free connection between the flange and the pipe. Threaded flanges work well for fixing equipment quickly.
Socket-Weld Flanges
Socket-weld flanges are suitable for smaller-diameter pipes and operate in lower-pressure/temperature systems. Insert the pipe into the female socket of socket-weld flanges, and then a fillet weld is used around the top to create a connection. It allows a seamless flow of liquid or gas in the pipe.
Other Industries We Serve
Explore diverse industries where flanges truly shine – Huaxi Flange offers solutions for all.
Petrochemical Treatment And Processing
In chemical processing plants, flanges connect pipes and other equipment, ensuring the smooth flow of hazardous chemicals and petroleum products without any leakage.
Power Generation
Flanges join steam and water pipes, assuring a secure transport of fluids in boilers, turbines, and condensers in power plants.
Industrial Pumps And Manufacturing Systems
Flanges are vital in this industry, ensuring the secure connection of pipes and pumps without any leakage in the manufacturing sector.
Food And Beverage Processing
Flanges join pipes in manufacturing and processing lines in the food and beverage industry, ensuring the hygienic and effective movement of liquids and gases.
Large-Scale Pipe Systems And Waterworks
Flanges connect pipes and maintain the integrity of gigantic systems in the mining and construction sectors and municipal water delivery systems.
Heat Exchangers And Systems
Heat exchangers experience thermal expansion. Flanged connections can adapt this movement, preventing pressure on the components and reducing the risk of damage or failure.
Nuclear Power Plants
A flange is essential for the system's safety in the pipeline engineering of nuclear power plants. The main form of its failure is corrosion.
WHY CHOOSE US
Your ANSI Flange Journey Starts Here
Get a diverse range of industrial flanges with unparalleled strength and exceptional performance.
- Tailor-made solution: Design flanges with specific dimensions and materials to cater to the project’s unique needs.
- Unrivaled Expertise: We are a team of professionals with in-depth knowledge of flanges and diverse applications for industries.
- Global Reach: Ensuring smooth and on-time product deliveries with an extensive distribution network, no matter where your location is. We have shipped to every continent on the globe. (Yes, including Antarctica).
- Quality Assurance: Flanges undergo rigorous testing to ensure durability, safety, and compliance.
Frequently Asked Questions (FAQs)
Raised face flanges have a raised ring around the pipe bore, which provides a sealing surface, while flat face flanges have a flat surface. RF flanges are suitable for most applications, while FF flanges are used when gasket seating is required.
